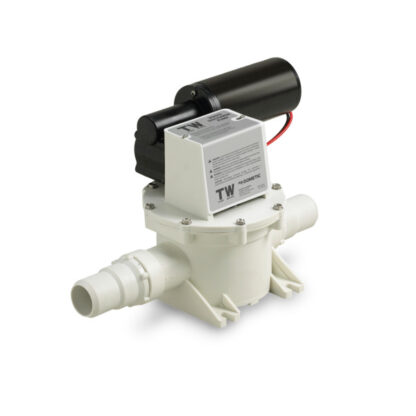

Dometic / Sealand T-Series Discharge & Macerator Pump

Dometic / SeaLand T-Series Discharge & Macerator Pump delivers premium tank discharge performance with unsurpassed quality and reliability, achieving a 300 GPH (1136 LPH) flow rate. Unlike impeller-type macerator pumps, the bellows-style T-pump can run dry without risk of damage. The pump accepts either a 1.5″ or 1″ discharge hose but requires a 1.5″ hose for the inlet.

Please select voltage: the 12 Volt pump has a black motor, while the 24 Volt pump has a grey motor.

Features:

• Self-Priming to 10 ft. (3.3 m) of Water
• Draws Only 6 Amps at 12V DC (10amp breaker required) or 3 Amps at 24V DC (5amp breaker required

Legacy Part Numbers/SKU:

• 12v: 317301200
• 24v: 317302400

UPC:

• 12v: 87735101844
• 24v: 87735101868

Dometic SKU:

• 12v: 9108554778
• 24v: 9108554779
