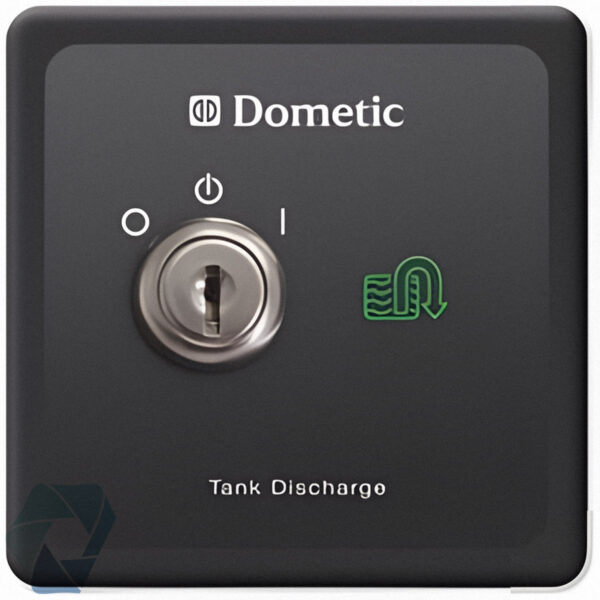

Dometic Tank Discharge Controller

Where overboard discharge of a waste holding tank is permitted, Dometic DTD Tank Discharge controls offer many options to match preferred methods of tank discharge operation. A key-operated switch allows the user to activate the discharge pump, or set the DTD panel for semi- or fully-automatic operation, depending on the DTD model. All panels include a green light that indicates when the discharge pump is running. DTD controls can be used with a discharge pump operating on the same voltage and a maximum circuit rating of 20 amps.

Included:

Panel
Instruction manual

Installation / Owner’s Manual

Part numbers:

Product	Legacy Part # / SKU	UPC / GTIN	Dometic SKU
12V W/O Indicator – Manual or Semi-Automatic	313814101	713814073763	9108554545
12V W/O Indicator – Manual or Fully Automatic	313814301	713814073848	9108554553
12V With Warning – Manual or Semi-Automatic	313814201	713814073800	9108554549
12V With Warning – Manual or Fully Automatic	313814401	713814073886	9108554557
24V W/O Indicator – Manual or Semi-Automatic	313814103	713814073787	9108554547
24V W/O Indicator – Manual or Fully Automatic	313814303	713814073862	9108554555
24V With Warning – Manual or Semi-Automatic	313814203	713814073824	9108554551
24V With Warning – Manual or Fully Automatic	313814403	713814073909	9108554559

Weight	1 lbs
Dimensions	8 × 6 × 5 in
Voltage	12 Volt, 24 Volt
Sea-cock Warning Indicator	Without Indicator, With Warning
Operation	Manual or Semi-Automatic, Manual or Fully Automatic
