Dometic / Sealand Holding Tank Monitor DTM 04

Eliminate the risk of overfilling your holding tank, and always know the status with the Dometic/SeaLand DTM04 monitor. This monitor measures four levels in the waste tank, with panels noting empty, low, mid, and full levels. A continuous light indicates that power is on, and a full-tank shutdown option prevents the risk of overflow. These panels can connect with a DTD Tank Discharge Control to offer convenient holding tank discharge options. The Dometic Holding Tank Monitor was formally known as the Sealand Tank Watch. A trim bezel is available to convert from the old Tank watch (TW) to the new Dometic Tank Monitor (DTM).

Features:

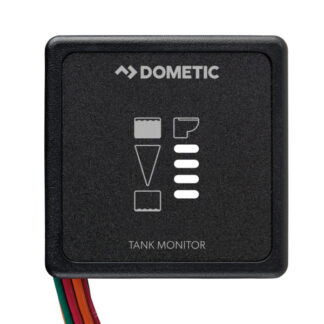

Wall-mountable display panel features four-color LED indicator for easy monitoring
Optional relay to shut down electric toilets in the event of a full tank is available

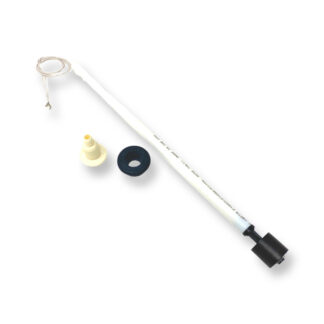

Probe assembly options fit tanks up to 22 in. (55.9 cm) and 45 in. (114.3 cm) tall
12 V DC or 24 V DC operation

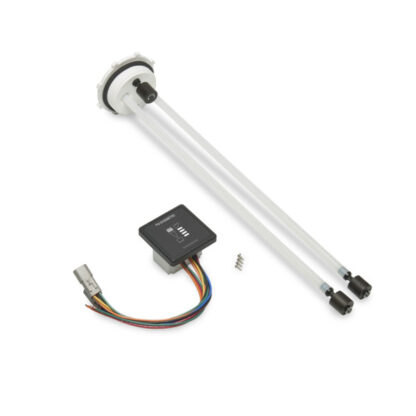

Includes one set of tank probes

Dometic Tank Monitor Manual

Part Numbers:

Product	Legacy Part # / SKU	UPC / GTIN	Dometic SKU
DTM 04 With Vent – Max Probe Depth 22”	360604001	713814066581	9108557645
DTM 04 With Vent – Max Probe Depth 45”	360604003	713814066604	9108557647
DTM 04 Without Vent – Max Probe Depth 22”	360604002	713814066598	9108557646
DTM 04 Without Vent – Max Probe Depth 45”	360604004	713814066611	9108557648
