Low Profile Vacuum Generator VG3


Low Profile Vacuum Generator VG3

SKU: N/A Category:

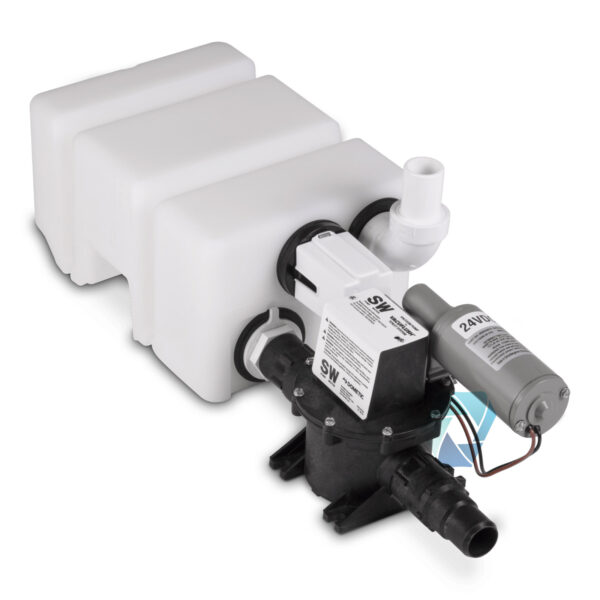

The Dometic VG3 is the ultimate low-profile vacuum generator solution for boat owners where space is at a premium. This whisper-quiet, high-powered generator is only 8″ tall, making it the perfect fit for any boat. The VG3 is provided as a single unit, and the vacuum pump and sturdy polyethylene vacuum chamber can be installed separately to fit in even the most unique applications. The VG3 is also available in 12 or 24 volts, allowing you to customize it to your exact power requirements. With the VG3, you’ll get superior performance from the tiniest package. Doemtic offers a Fleetwood Specific model

  •  8″ H x 29″ L
  • 12 or 24 Volts
  • 6 amps @ 12 V DC; 3 amps @ 24 V DC (10 AMP OR 5 AMP BREAKER)
  • Inlet PlumbingID 1.5 “
  • Horizontal run 50 ft./15.2 m max. from toilet discharge, Vertical run 6 ft./1.8 m max. from toilet discharge
  • Discharge Plumbing ID 1.5 in./38 mm sanitation hose or PVC pipe
  • Horizontal run 20 ft./6.1 m max. to holding tank & Vertical run 6 ft./1.8 m max. to holding tank

Additional information

Weight 20 lbs
Dimensions 32 × 15 × 15 in

12 Volt, 24Volt
